For small business wireless network setup, follow these steps: There should only be one Ethernet cable for input on the wireless router. Don't plug in the work computers on the wireless router. The Ethernet input has to come through the firewall as shown in the setup diagram. Small Business Network Design & Infrastructure Basics. When you run a small business, budgeting is typically tight, so creating an effective, available network may seem intimidating. However, you don't need the same (often expensive) equipment and advanced setup that larger businesses require.

Here's a typical small business network setup example: And here's a description of a simple office network setup: The internet connection comes via a cable from your ISP (internet service provider). This cable connects to your router. The firewall filters the traffic transmitted through the cable, which then connects to a switch.

Small business network setup diagram

Office Network Diagram Template. Use Creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. You can edit this template and create your own diagram. Creately diagrams can be exported and added to Word, PPT (powerpoint), Excel, Visio or any other document. The network is designed to achieve several specific business/operational objectives: ... but there will be some still graphics and possibly a small amount of voice and video (primarily for PC-based teleconferencing). ... South District Network Diagram (LAN cabling is 100BaseT CAT5) South District Network Sub-Diagram. This small company network diagram template can help you: - Visualize the components of a basic network. - Understand the flow of information and interactions among network devices. - Design your own network diagram. Open this template to view a small company network diagram example that you can customize to your use case.

Small business network setup diagram. Again, this setup can work if you have a small house or if you can place your router close to the room where you use wireless devices the most. Cons. Just like with the basic network diagram, you can only connect a limited amount of wired devices, and you will have poor wireless network coverage in your house. Router Switch Network Diagram A perfect tool to draw basic computer network diagrams, designs, schematics, and network maps. Numerous stencils and templates. Small Office Network Setup Diagram The article is for IT Pros who help set up your small business network. Applies to: Windows 10 - all editions, Windows Server 2012 R2 Original KB number: 10064. Evaluate network types. Many small businesses use a network to share access to the Internet, printers, and files from one computer to another. While having a network almost surely ... Small Business Networking Solutions. Grow your business with the latest networking solutions that keep your employees connected and productive wherever they are. ... Cisco Business Dashboard makes managing a business network easy by automating the deployment, monitoring, and lifecycle management of Cisco Business switches, routers, and wireless ...

Small Business Routers. A router is used to direct network traffic between different networks. In a small business, the most obvious (and often only) example of this is connecting the internet with your office network, two separate networks that need joining in order to provide internet access to all network users. Just as a switch connects multiple devices to create a network, a router connects multiple switches, and their respective networks, to form an even larger network. These networks may be in a single location or across multiple locations. When building a small business network, you will need one or more routers. Small Business Network Design. After getting familiar with equipment let's proceed with small business network setup diagram. Below is an example of small office network with one server. Along with server, you have firewall and router. As you can see firewall is the first line of defense, the icon next to Internet. It typically includes elements like subnets, network objects and devices, routing protocols and domains, voice gateways, traffic flow and network segments. In logical network diagrams, there are pivots for small, medium and large networks, where network diagram templates can be helpful. Physical . Think of physical network mapping like a floor ...

Network Solutions, Inc. is a networking engineering and design company specializing in mid to large sized corporation design and implementation of Local and Wide Area Networks with the goal of providing increase productivity, employee performance and improved workflow. Small Business Network Topology ( Network Diagram) Use Creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. Edit this Diagram. Boson. We were unable to load the diagram. tap diagram to zoom and pan. You can edit this template on Creately's Visual Workspace to get ... This article understands how to setup a small office network with server and internet connection. The detailed steps are mentioned below. We are assuming that there are atleast 20 users in the small office network. Step 1 Purchase a wireless or wired router for getting access to the internet. Check out wireless routers on Amazon […] Setting up a small business network is the first step every business takes to build a computing platform for business operations. Your business cannot operate without Information Technology Systems, and today more than ever, companies need to adapt and build reliable computer networks to support business operations.

Article: Breeding, Marshall. Designing and building the best small office network from the ground up. This chapter guides you through the process of designing a network for a small business or an independent branch office. A typical network of this sort includes one to two dozen or so computer users (and computers), a server or two, some networked printers and access to other networks ...

The more your business's IT system grows, the more you need an up-to-date network diagram. You or your IT services provider may need it in an urgent troubleshooting situation. And that's only one of the five reasons to have a network diagram — especially if you're not an IT expert.

How to design a better network for your small business. In our previous blog on how to build a network for a small business, we discussed the functioning and business requirements related to Modems, Routers, Firewalls, Switches, and LAN cable or Patch Cable.. In a business environment, you will likely find a few more network devices, namely - Access Point, Repeater, PoE, and Patch Panel.

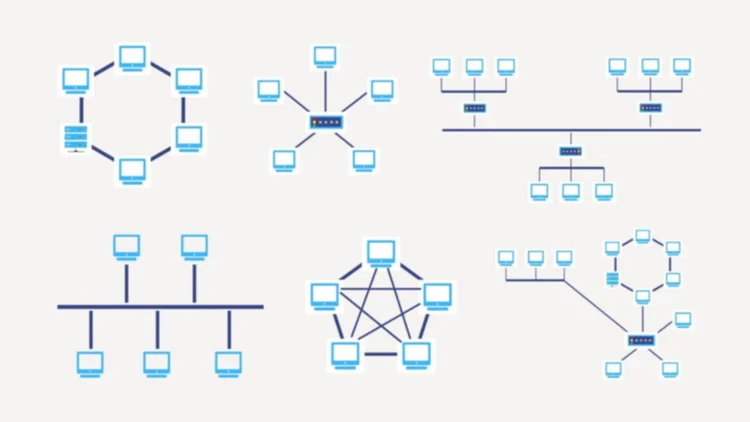

Building a local area network (LAN) topology can be make-or-break for your business, as you want to set up a resilient, secure, and easy-to-maintain topology. There are several different types of network topology and all are suitable for different purposes, depending on the overall network size and your objectives.
